On-Off LED Dimmer Switch with Bezel

Price as Configured
Current Stock:
size: 4.00 W × 4.00 H × 4.00 L
Price as Configured
Prices for product only. Installation not included.
A Word about Delivery Time Frames

On/Off LED Dimmer Switch with Bezel.  Product details:

  • 12vdc
  • 10amp (important!). Must be fused.
  • 3 Wire Hookup
  • Operating Voltage 9vdc to 16vdc
  • This is a high-side electronic 12vdc light dimmer that is a Pulse Width Modulated (PWM) device.
  • Easy mounting with hidden screen holes.
  • LED Approved.  Also works with incandescent and halogen lights/bulbs
  • Available in Black and White
  • Cutout:  1.75" x 2.25"
  • Switch: 2.82" x 3.00"
  • For use with single color LEDs where you want to be able to dim and turn them on/off.
  • Power wire minimum gauge is 14awg but you may need 10awg.
  • Designed to function in extreme temperate variations and protected against voltage spikes
  • Manufactured in the USA by American Technology

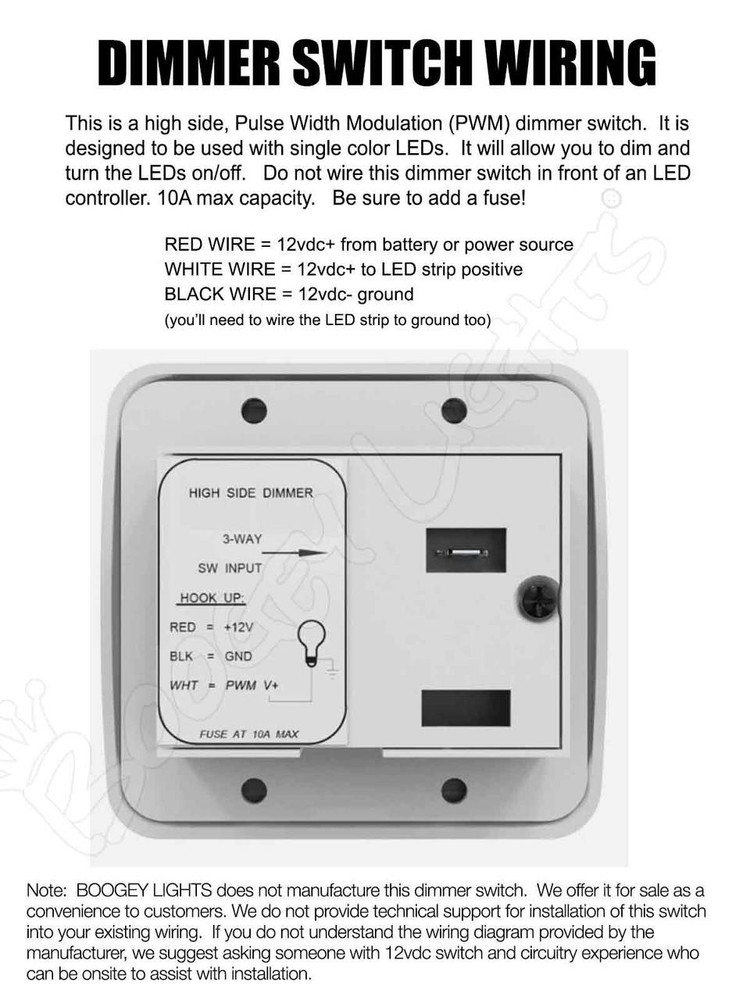

  • Download Wiring Diagram

Note:  We do not manufacture this dimmer switch.  We offer it for sale here as a convenience to customers. We do not provide technical support for installation of this product into your existing wiring.  If you do not understand the wiring diagram provided by the manufacturer, we suggest asking someone who can be onsite with you that has 12vdc wiring experience to assist you with the installation of this switch.  For technical support on this switch, contact American Technology directly
