Comparison Chart of Boogey Lights® LED Controllers in Production

MAY 2021 | The below list of wireless LED CONTROLLERs are in production and currently offered for use with Boogey Lights® LEDs. They can be purchased individually as well as in many of our pre-made LED light kits. For a list of all out-of-production Boogey Lights® LED controllers, CLICK HERE.

BOOGEY LIGHTS® WIRELESS LED CONTROLLER
PART #
SKU
REMOTE STYLE
BLUETOOTH
LED TYPE
LED CAPACITY 4
# OF COLORS
PLUS COMBO LED Controller - KEYFOB, Brake Flash [1] BLRC-009+BF PGU-RC-RGB-COMBO-PLUS-KF-BF Wireless RF Compact KEY FOB
Yes
RGB
~300
RF: 7
Bluetooth: 16 million
SUPER COMBO LED Controller - KEYFOB, Brake Flash [1] BLRC-009SBF PGU-RC-RGB-COMBO-SUPER-KF-BF Wireless RF Compact KEY FOB
Yes
RGB
~900
RF: 7
Bluetooth: 16 million
HD COMBO LED Controller - KEYFOB BLRC-009HD PGU-RC-RGB-COMBO-HD-KF Wireless RF Compact KEY FOB
Yes
RGB
~1800
RF: 7
Bluetooth: 16 million
SUPER COMBO LED Controller - M7 BLRC-009SM7 PGU-RC-RGB-COMBO-SUPER-M7 Wireless RF M7
Yes
RGB
~900
RF: 7
Bluetooth: 16 million
HD COMBO LED Controller - M7, eXtended Antenna [2] BLRC-009HDM7X PGU-RC-RGB-COMBO-HD-M7X Wireless RF M7
Yes
RGB
~1800
RF: 7
Bluetooth: 16 million
HD DUAL ZONE COMBO LED Controller - LRM7 [3], eXtended Antenna [2] BLRC-011DZM7X PGU-RC-RGB-COMBO-DZ-LRM7X Wireless RF LRM7 [3]
Yes
RGB
~1500 x2
RF: 7
Bluetooth: 16 million
SUPER RGBWW LED Controller - LRM7 [3] BLRC-012SM7 PGU-RC-RGBWW-SUPER-LRM7 Wireless RF LRM7 [3]
NO
RGBWW
~600
RF: 7 RGB, 2 WW
HD RGBWW LED Controller - LRM7 [3], eXtended Antenna [2] BLRC-012HDM7X PGU-RC-RGBWW-HD-LRM7X Wireless RF LRM7 [3]
NO
RGBWW
~1200
RF: 7 RGB, 2 WW

1   This LED controller includes our BRAKE FLASH feature. With this feature the LED controller can be wired such that when the brake flash circuit is energized with 12vdc power, the LED controller immediately energizes just the LEDs connected to the RED output wire of the LED controller. This is a popular safety option for motorcycles. Note that the Brake Flash circuit does not have to be used. If you don't want to use the Brake Flash circuit, simply cap the brake flash input wire on the controller and forget about it.
2   This LED controller includes two antennas: A 1.5" "stubby" antenna and a 5" magnetically mounted antenna with 16' extension cable. The stubby antenna connects directly to the controller and works well in most installations. The eXtended Antenna will in most cases, quadruple the range of our wireless remote controllers. In addition, if you're installing the LED controller in an area that is encased in metal (which makes it difficult for the RF signal to communicate), using this extension antenna kit will in most cases resolve any reception issues. The 16' extension cable gives you flexibility to mount the 5" whip antenna in the best location. Note that this eXtended antenna improves the reception of the RF wireless remote controls. It does not in any way improve Bluetooth reception.
3   The Long Range (LR) wireless RF M7 remote will at least double the transmission distance of the standard M7 wireless remote. While it's an option on some of our LED controllers, it comes standard on this LED controller. The Long Range M7 remote uses a 12vdc battery (A27) vs 3vdc (CR2032).
4   All Boogey Lights® LED Controllers have a rated LED capacity. Exceeding this capacity will over-load the controller; potentially causing a dangerous situation. The stated capacity assumes a typical installation with no more than 25' of power lead wire used per 300 LED strip. Adding more power lead wire to the installation will increase amperage drawn and thus reduce LED capacity. We urge customers to pay attention to this rating capacity and make sure they don't exceed it. Where possible we recommend having excess capacity.


Boogey Lights® RF Controllers (both the KEY FOB and M7 controllers) displays seven colors (steady on + four lighting effects): RED, GREEN, BLUE, WHITE, LIGHT BLUE, BOOGEY LIGHTS GREEN (LIME GREEN/YELLOW), HOT PINK/PURPLE. The lighting effects options for our RF Controller include: DIMMING, BLENDING, BREATHING, STROBING. In the Blending, Breathing and Strobing modes these features can be set to remain on a single color or to cycle through each of the 7 colors. You can also adjust the speed at which this happens. The RF remote control offers SEVEN levels lighting effects (e.g. 7 levels of dimming). For the DUAL ZONE Heavy Duty LED controller, these functions work independently per zone OR both zones together.
Boogey Lights® RGB LED controllers can also be used with Single Color LEDs. It can be accomplished by connecting the Red-Green-Blue (RGB) power output wires coming from the LED controller to the 12vdc positive (red) lead to the single color LED strip. The black ground wire from the LED Controller is connected to the black ground wire on the LED strip. While you can't change colors this way (obviously- the LED strip is only one color) you can dim, strobe, flash, blend and turn on/off the LEDs using the wireless remote. Here's a Wiring Diagram for reference.
NOTE: Boogey Lights® LED controllers are positively switched controllers. They will only work with COMMON CATHODE LEDs. Amperage draw per 300 LEDs is 3.5amps on the brightest white setting. LEDs are 5050 Hi-Intensity LEDs. Boogey Lights® controllers have been engineered to handle more than the rated number. LED Capacity is ultimately impacted by the length and guage of power lead wire used to extend to the LED strips from the controller connection.
About the Boogey Lights® Bluetooth Smartphone APP

RGB vs RGBWW | Understanding LED Color Temperature

RGB vs RGBWW | The Differences

Using an RGB LED Controller with RGBWW LED Lights

RF WIRELESS REMOTE CONTROLS

Boogey Lights® offers two wireless RF remote control styles: KEY FOB and what's referred to as an M7 tv style remote. While both provide the same operational functionality, the main difference between the two styles is the size and the number of buttons. With either remote control style and a Boogey Lights RGB LED controller you can change between seven pre-set colors (white, red, green, blue, pink, lime green, light blue) along with functions of on/off, color blending, strobing, breathing, flashing, fading and 7 levels of dimming. In the Blending, Breathing, Flashing and Strobing modes these features can be set to remain on a single color or to cycle through each of the 7 colors. You can also adjust the speed at which this happens. For the RGBWW remote you can also adjust the white intensity and temperature of the two WW diodes. For the dual zone RGB controller you can adjust the RGB colors and functions listed per zone. And finally, if the LED controller is Bluetooth capable (using your smartphone and our free IOS or Android APP), you can create a custom look with over 16 million different color combinations plus three pre-sets (per zone) along with two or three color programming functionality. See Bluetooth APP information above for more details on the Bluetooth functionality.

Note: A KEY FOB style RF remote cannot be paired with an LED Controller designed to be used with the M7 RF style remote (and vise versa).

KEY FOB RF Wireless Remote: The KEY FOB remote is smaller with a cover that slides over top of the four buttons to protect them from being accidentally pressed. The KEY FOB style is most commonly used with small format vehicles such as motorcycles, cars, golf carts and boats. Measurements are 2" tall x 1" wide x .5" high and uses an MN27 12v alkaline battery. Because there are only four buttons, each of the buttons provides multiple functions. This can make it a little more confusing to some since each of the buttons has 2 functions. It's not difficult to learn but it's not as intuitive as the larger format RF remote. Also, the KEY FOB RF remotes will only work with our single color RGB led lights. The KEY FOB RF remote is not offered with our RGBWW LEDs or in a DUAL ZONE controller format. There is only one KEY FOB RF style remote available. Sold as a pair.

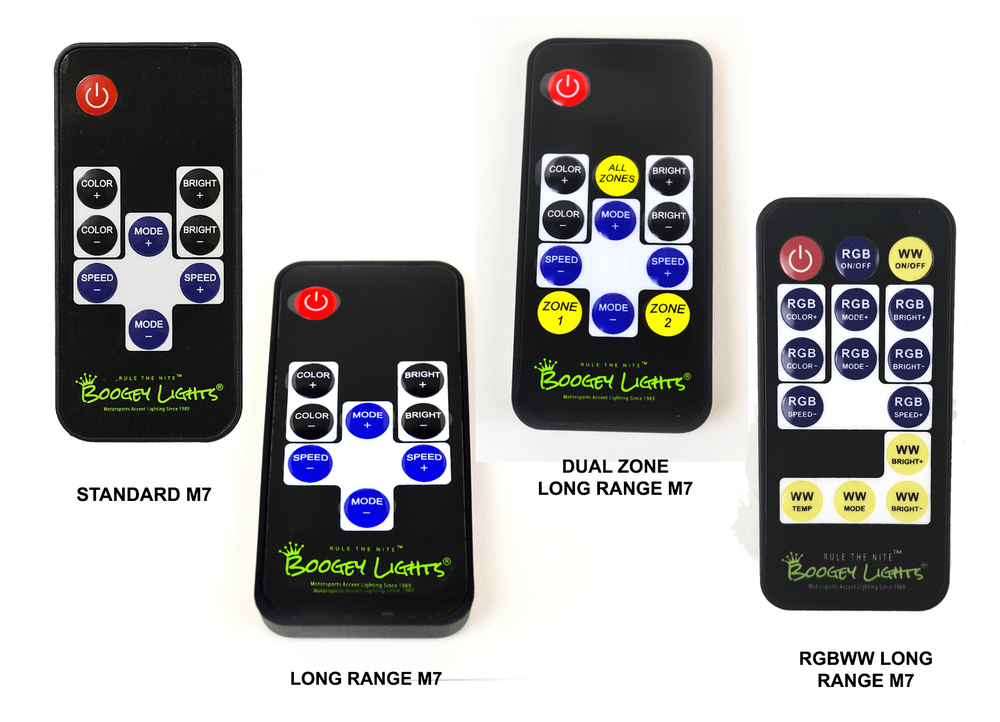

M7 STYLE RF Wireless Remote: The M7 Style RF wireless remote is a larger hand held remote. It measures  3 3/8" tall x 1 5/8" wide x 1/4" high. Depending upon the style of M7, there are 8 to 15 different buttons on the M7 remote. Each button is single function which makes it more intuitive to use. We currently manufacture four different M7 style RF wireless remotes (see photo) depending on the LED controller. The STANDARD M7 remote has a 3vdc battery (CR2032) whereas all of the other M7 remotes uses a 12v A27 battery. Sold individually.



Boogey Lights KEY FOB RF wireless remote  Boogey Lights M7 Style RF wireless remote
