Food Trailer Roof Perimeter LED Light Kit

$799.99
Price as Configured
SKU: KMV-FT-RGB-G2HDDZ-20
UPC: 812928022800
Current Stock:
SKU: KMV-FT-RGB-G2HDDZ-20
UPC: 812928022800
size: 18.00 W × 18.00 H × 12.00 L
Price as Configured
$799.99
Prices for product only. Installation not included.
A Word about Delivery Time Frames

Food Trailer Roof Perimeter - Dual Zone - LED Light Kit

Be sure to scroll down, expand each text group section and read the information presented. We think you'll find our product documentation is very thorough.

Make your Food Trailer or Truck stand out! Our impressively bright surface mounted hi-intensity LED strips are ideal for Food Trucks, BBQ Wagons and Food Trailers. With more super-bright LEDs per inch than any other surface mounted LED strip on the market, our LED strips are ideal for mobile lighting applications. Based on our popular in-house food trailer installations, this Food Trailer LED light kit is designed to ring the roof line of your food trailer with super-bright LED lights to attract maximum attention.

PRODUCT HIGHLIGHTS

The kit includes our Bluetooth + RF wireless DUAL ZONE Heavy Duty LED controller that allows you to set two lighting zones to create unique lighting effects that are sure to be seen! This kit is currently offered in seven different trailer configurations to fit 6x12', 8x14', 8x16', 8x20', 8x24', 8x28' and 8x32' trailers. We can also customize this kit to fit other trailer/truck formats. Just ask!

You can operate the LED controller with the included RF wireless remote OR you can use your Bluetooth enabled smartphone and our free smartphone APP (Android and IOS). The included RF wireless controller and the RGB LED strip displays the following seven pre-set colors which can be adjusted per lighting zone: Red, green, blue, white, light blue, Boogey Lights green (lime green/yellow), hot pink/purple. The lighting effects options for each lighting zone include: Solid on, dimming, fading, breathing, strobing. The RF remote control offers SEVEN levels lighting effects (e.g. 7 levels of dimming). We also offer the option of RGBW and RGBA (see details below).

With Bluetooth however, your options are significantly expanded. You can control the lights using your bluetooth enable smartphone and our free APP (Android or IOS). With Bluetooth you have the option of configuring the colors with over 16 million possible color combinations.. In addition, lighting effects on the bluetooth smartphone controller are significantly more controllable in terms of speed and intensity. Each color and lighting effect is controlled by "sliders" or a color square on your smartphone screen so you can adjust the speed and intensity to get the lighting exactly the way you want it. In addition, you can 'program' your lighting setup to rotating a series of 2 or 3 colors that you choose. And because you have two lighting zones to work with, you can set one zone to one lighting sequence and the other zone to another lighting sequence. It makes for some truly eye-catching led light displays.

More About the Boogey Lights® Bluetooth Smartphone APP



KIT CONFIGURATIONS

CONFIGURATIONS:

1] 8' x 14': 2 - 8' led strips and 4 - 7' led strips (all with 15' power leads).
3] 8' x 16': 2 - 8' led strips and 2 - 16' led strips (all with 15' power leads).
3] 8' x 20': 2 - 8' led strips and 4 - 10' led strips (all with 15' power leads).
4] 8' x 24': 2 - 8' led strips and 4 - 12' led strips (all with 15' power leads).
5] 8' x 28': 2 - 8' led strips and 4 - 14' led strips (all with 15' power leads).
6] 8' x 32': 2 - 8' led strips and 4 - 16' led strips (all with 15' power leads).
7] 6' x 12': 2 - 6' led strips and 2 - 12' led strips (all with 15' power leads).

In all seven configurations, the two 8' led strips (or two 6' strips) are designed to go on the front and rear of the trailer. The other 2 or 4 strips are designed to mount to each side of the trailer. So for example, with an 8' x 20' trailer, there are two 10' led strips on each side of the trailer. These two led strips butt up to each other end to end with the power lead at the opposite end (one power lead facing forward, one power lead facing rearward). The three strips that are facing toward the front of the trailer (1 - 10', 1- 8' and 1- 10') are assigned to ZONE 1. The other three strips facing toward the rear are assigned to ZONE 2. The power leads go over the side and up on the roof. They access the LED Controller inside the foot trailer in one location. See diagrams on Installation tab.

LED CONTROLLER

The LED Controller included in this kit is our GEN2 Dual Zone Heavy Duty Bluetooth COMBO LED Controller. COMBO means they can be operated using either the included M7 RF wireless hand held remote OR your Bluetooth enable smartphone (and our free APP). Both will work. The RGB version is capable of displaying 16 million different color combinations. The GEN2 RGBx version can display even more color combinations depending on the type of LED strips connected to them. In addition, lighting effects on the Bluetooth controller are significantly more controllable in terms of speed and intensity. Each color and lighting effect is controlled by "sliders" or a color square on your smartphone screen so you can adjust the speed and intensity to get the lighting the way you want it.

Key Features & Capabilities

  • Our GEN2 LED Controllers are based on the Bluetooth 5 chip set family which provide fast response times and the best possible RF/Bluetooth transmission distance.
  • The SUPER and HEAVY DUTY GEN2 Controller can support Single Color, RGB, RGBx and RGBxx LED strips with both RF and Bluetooth control.
  • The HEAVY DUTY controller versions include two antennas: a screw-on 2" stubby antenna and an extended magnetic mount antenna with 15' of wire for optimal reception on any vehicle.
  • Use the included RF wireless remote to quickly turn on/off/dim your Boogey Lights. You can also select up to 7 different preset colors using the RF remote as well as access 7 different lighting features.
  • Use your smartphone to operate your Boogey Lights®: On, Off, Dimming, Color Selection, Brightness, Speed, Color Programming, Timers
  • Adjust the color sliders or color square to select the color you want.
  • Access additional lighting features (e.g. strobing, flashing, breathing, morphing) modes using the 7 Function Keys.
  • Save your favorite lighting configuration using Pre-Sets
  • Countdown Timer and a 24 hour On/Off Timer function
  • Quick-Switch feature for use with RGBx LED strips.
  • Password protection to stop others from connecting to your LED controller.
  • Programmable Color Rotation mode offers the ability to program the controller to display two or three colors of your choice and then rotate those colors in sequence.
  • Assign a 'nick name' to your controller so you can easily find it when scanning.
  • Set the APP to auto-connect to your LED controller every time you launch the APP on your phone
  • DOWNLOAD the GEN2 LED Controller Operating Manual & Wiring Diagrams
  • DOWNLOAD the GEN2 Bluetooth Operating Manual
  • DOWNLOAD the GEN2 M7 RF Wireless Remote Operating Information
  • VIEW the GEN2 LED Controller Series Product Page
  • VIEW the GEN2 BLUETOOTH APP Information Page

Boogey Lights Food Trailer Light Kit Configuration

You can read more about these features on our GEN2 COMBO LED CONTROLLER product page.

Color Options and Considerations

This light kit is offered in three RGB multi-color configurations: RGB, RGBW (RGB + warm white) and RGBA (RGB + amber). The default is RGB. RGB stands for RED, GREEN, BLUE. Each LED chip on the strip contiains three diodes: One Red. One Green. One Blue. When paired with an LED controller, the mixing of those three primary colors can create up to 16 million different color combinations. For example, equal parts RED + GREEN + BLUE = WHITE (bright white, 6000 Kelvin temp). RGB leds are the most common leds due to their versatility in creating so many different color combinations. With RGB and the included RF wireless remote you can change between 7 pre-set colors (Red, Green, Blue, White, Light Blue, Lime Green/Yellow, Hot Pink/Purple) and functions of on/off, blending, strobing, breathing, flashing, fading and dimming. You can also use your Bluetooth enabled smart phone to create a custom look. The Bluetooth APP allows you to program the RGB diodes of any of our RGB, RGBW and RGBA strips with over 16 million different color combinations plus three pre-sets. Also, the Bluetooth APP offers 2 and 3 color rotation programming along with two timer features. Click the BLUETOOTH APP navigation tab on this product page for significantly more information on both the Bluetooth capabilities and APP functionality (including a video showing how the Bluetooth APP works)

RGBW: On the RGBW led strip, in addition to RGB, you get one extra diode which is Warm White. That warm white diode has a Kelvin temperature of 2400 which means it has a yellowish look giving it a warmer, softer, candle like look (see photo below). That fourth diode on the RGBW led strip can be wired directly to our GEN2 LED Controller which supports RGBx LEDs. As an option, you could also wire that fourth diode to a completely separate on/off switch. Your choice. You could also use the Quick-Switch feature with this fourth diode too.

RGBA: On the RGBA led strip, in addition to RGB, you get one extra diode which is AMBER. That fourth diode on the RGBA led strip can be wired directly to our GEN2 LED Controller which supports RGBx LEDs. As an option, you could also wire that fourth diode to a completely separate on/off switch. Your choice. You could also use the Quick-Switch feature with this fourth diode too.

Important Installation Note: If purchasing RGBW or RGBA be aware that these LED strips are wider than the default RGB strip to accomodate the additional diode for that fourth color. There's also additional power lead wire required to power that fourth diode. So both RGBW and RGBA cost more. RGB is 10mm wide whereas RGBW and RGBA are both 12mm wide. The wider LED strip can present a challenge during installation if you're installing the LED strip in the optional Mini T12 Aluminimun Channel. The aluminium channel is 12.3 mm wide; just a little wider than the LED strip. Extreme care needs to be taken when installing the LED strip in that aluminum channel. Forcing the LED strip into the channel can damage the LED strip; something that is not covered under warranty. For this reason we do not recommend using the optional aluminum channels with the RGBW or RGBA LED strips unless you're absolutely certain you know what you're doing. To be clear, the installation of the RGBW or RGBA LED strip into the aluminum can be done but the person doing the installation must understand the issue and the risk associated with this type of installation. We also suggest allocating at least an extra hour to the installation time as carefully pushing the LED strip into the channel takes time. It's not something you can rush and do it properly.

PRE-BUILT LED CONTROL CENTER (OPTIONAL)

We offer the option of pre-building the LED Control Center with your order. These LED Control Centers make for a professional looking installation. Also makes the installation a little easier for DIYers since the controller wiring is neatly organized and easily identifiable. It's also a huge time saver. Can easily save two hours (or more) when doing a typical installation.

The pre-built Control Center has the LED Controller and power connections mounted to a PVC board. The power connections make it simple to connect your battery power as well as the LED strip power leads via a terminal blocks mounted to the board. Simply strip the end of the battery lead cable and LED strip power leads, push them into the terminal block and tighten the screw. This design also makes trouble shooting easier. The board has four 2" stand offs with plexi-glass mounted on top which keeps the components protected. You can read more about this option on the LED CONTROL CENTER product page. We include some photos below. The LED Control Center option is only available when an LED Controller and/or relays are ordered.

Click to See Some LED Control Center Examples

ALUMINUM CHANNELS + DIFFUSERS (OPTIONAL)

Mounting the LED strips in an aluminum channel with plastic diffusers on top of the strips makes for a very nice, polished installation. It's a popular upgrade that not only looks terrific even in the daylight, it adds another layer of protection to the LED strips. We strongly recommend this option for anyone who wants the best possible look for their food trailer light system. See photo below.

Boogey Lights Food Trailer Light Kit Configuration

PRINTED CIRCUIT BOARD (PCB)

LED lights are mounted to a Printed Circuit Board (or PCB for short). The color of that PCB makes a difference in how the finished installation looks in the daylight. Our LED light strips come in two versions to match the surface the strip will be attached to. If you have a light colored vehicle, you will probably want to order the WHITE PCB light strip. If you have a dark colored vehicle, you will probably want to order the BLACK PCB light strip.

OTHER ITEMS YOU MAY NEED

No two installation scenarios are the same. Not everyone shares the same installation quality goals. Some folks are OK with twisting wires together, others want to solder them. Some folks are OK with running wires where they may be seen or unprotected to save money/time, others want a tidy, clean install without any wires showing. Some folks are OK with mounting their LED strips to whatever surface they can find, others want to take the time necessary to build out appropriate mounting surfaces to provide the best lighting effect on their vehicle. The point is it's not possible to provide all the materials necessary for all installation scenarios and quality goals. Our light kits provide the essential components needed for a high-quality, functioning lighting system. Installation of our light kit to your specific vehicle may however require additional items to make it look and fit the way you want. This is particularly the case with electrical wiring and mounting of LED strips. Before proceeding with your installation we suggest you consider THESE OTHER ITEMS.

Will Boogey Lights® Work with Other Brands?

The short answer is probably not. All Boogey Lights® RGB LED strips are COMMON CATHODE LEDS. They share a common ground and will only work with positively switched controllers. Most LED strips on the market today are COMMON ANODE because the controller technology used to power them is less expensive to manufacture. However they're not nearly as bright and are an overall inferior design when compared with COMMON CATHODE LEDs. For more information, click the button below.

Will Boogey Lights® Components Work with Other Brands?

WARRANTY INFORMATION

Boogey Lights® Low Profile Hi-Intensity Surface Mounted LED light strips are used in a number of Boogey Lights products for a variety of vehicle applications (including this product). Where and how these light strips are installed make all the difference in their durability and thus, our warranty. For this reason the duration of the Boogey Lights Low Profile Hi-Intensity LED Light Strips original owner warranty varies based on the vehicle application, use and installation types.

  • Recreational Applications: RVs, Motorcycles, Golf Carts: 3 years
  • Cars/Pickup Trucks/Off-Road: 1 year
  • Marine / Fresh Water: 3 years
  • Marine / Salt Water: 90 days
  • Food/Cargo Truck/Trailer, Other Light Duty Commercial Use / Installation done by Boogey Lights technicians in Florence, KY: 3 years
  • Food/Cargo Truck/Trailer, Other Light Duty Commercial Use / All other installation types: 1 year
  • Heavy Duty Truck and/or Trailer Commercial Use / Installation by Boogey Lights technicians in Florence, KY: 1 year
  • Heavy Duty Truck and/or Trailer Commercial Use / All other installation types: 90 days

Note on Commercial Applications: These low-profile surface mounted LED strips are not built to withstand significant flexing or lateral movement of the surface the strip is mounted to. Some examples include on semi-truck trailers as well as tow trucks where there is significant movement, bending or flexing of the surface to which the strip is mounted. Also, the strip can not mounted in such a way as they span multiple mounting surfaces. Mounting them this way will virtually guarantee the strip will fail sooner rather than later. These strips must be mounted to one single continuous smooth, clean, flat surface and in an area that is protected from corrosive chemicals. Commercial vehicles that frequently travel roads treated with corrosive chemicals often used for melting snow and ice can impact the durability of these LED strips if the strips are mounted in an area that is exposed to these chemicals. Hi-Intensity Strips that fail in these operating environments ARE NOT COVERED UNDER WARRANTY. For these types of operating environments we strongly recommend (and warranty) our HEAVY DUTY LED strips.


View the complete limited product Warranty Terms & Conditions here
Includes
Roof perimeter RGB multi-color LED light kit for the trailer length configuration you select. Your choice of Black or White PCB.
RGB/Multi-Color Wireless RF + Bluetooth Combo RGB Heavy Duty Dual Zone LED controller with M7 Style wireless remote. This is a Dual Zone LED controller which provides the ability to segment your lights into two distinct zones. For this Food Trailer kit we recommend segmenting the LEDs such that half of them are assigned to zone one and the other half to zone two. See diagram on the Installation tab.
Optional: Mini T12 aluminum channels and diffusers.
20 Amp 120vac to 12vdc power converter.
Installation supplies includes wiring kit, 50' of feeder cable, 3M Adhesion Primer, 3M quick-lock, split wire loom.
Installation Manual and Wiring Diagram
Original owner warranty ranges from 1 to 3 years depending who does the installation. See warranty details below.
Return Policy Exception Notice. This kit subject to a 35% restocking fee due to the amount of time associated with producing this kit, shipping costs and the custom nature. See return policy for complete details.

Install Info

Installation of this led light kit takes 6 to 8 hours depending on whether or not you're mounting the aluminum channels first. Also depends on where you mount the LED controller and power converter inside the trailer. You can download the Installation Manual directly from our website to get an idea of what's involved.

There are six different mounting locations in this kit and all of the power leads need to be carefully run up and over the side to the roof. The power leads need to be secured to the roof using zip tie mounts (3m tape + screwed in). We recommend putting some butyl tape too over every zip tie mount. A hole will need to be drilled in the roof to allow the power lead cables to enter the trailer and connect to the LED controller. The front three LED strips are wired to ZONE 1 on the LED controller. The rear three LED strips are wired to ZONE 2 on the LED Controller.

Tools and Supplies You May Need:   Ladder, power drill, hole saw drill bit (3/4" to 1") , wire cutters, wire strippers, crimping tool, electrical tape, rubbing alcohol, shop rags, extra zip ties, silicone sealant.

If you're installing our mini T12 aluminum channels (and then mounting your LED strips to that channel) you're also going to need either rivets (+ rivet gun) or sheet metal screws (+ screw gun). The length of the rivets/screws depends on the construction of your food trailer but generally, 1/2 " to 5/8" rivets/screws will work. We prefer large flange pop rivets over screws. If you opt for screws, make sure they're either flat head or round head (not hex or pan head).

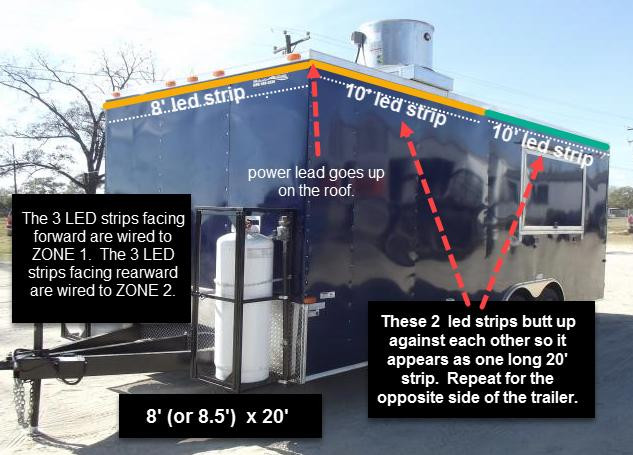

The following diagrams are using an 8' x 20' trailer configuration as an example. The lengths of the LED strips would change based on the configuration you select.

Boogey Lights Food Trailer Light Kit Configuration Boogey Lights Food Trailer Light Kit Configuration Boogey Lights Food Trailer Light Kit Configuration Boogey Lights Food Trailer Light Kit Configuration Boogey Lights Food Trailer Light Kit Configuration
